FIXON® Textile Marker
FIXON Textile Marker is the most modern, most practical and easiest method of writing on fabrics.
Fabric writing dyes make the time-consuming sewing of piece numbers unnecessary.
The FIXON Textile Marker can be delivered in the following colours:
white, yellow, orange, red, blue,green, black.
The diversity of colours enables the goods to be written on quarterly or according to customer groups.
FIXON Textile Marker is chemically stable for:
Organical acid,
Boiled in 30% caustic coda solution,
Boiled in 20% sulphuric acid,
High temp up to 220 C,
washed in soda soap solutions,
submitted to peroxide-chloride-bleach,
thermofilation,
cylinder press,
HAT-dye machine etc.

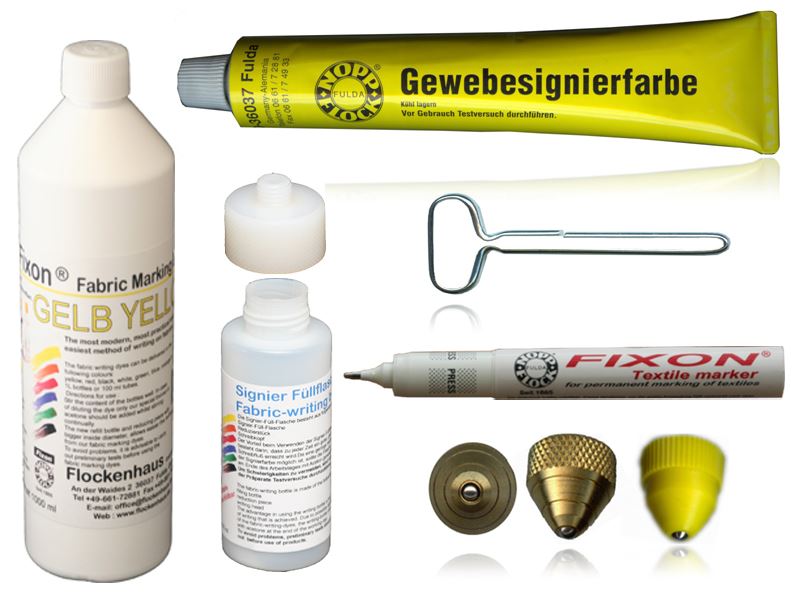

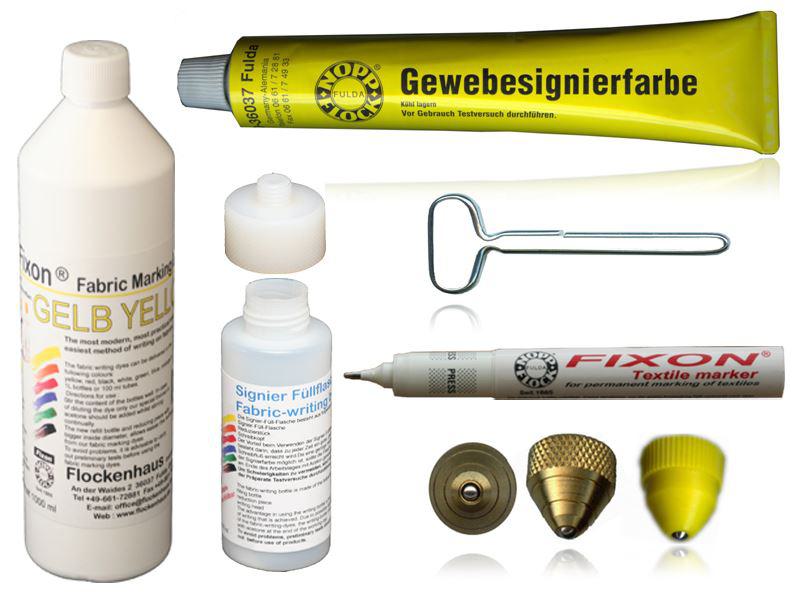

Type:
|
FIXON Textile Marker in tube 100ml |
|
|
FIXON Textile Marker fabric-writing bottle P'100 *NEW* |
|
|

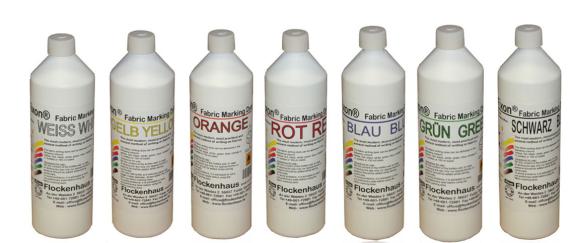

FIXON Textile Marker bottles 1000 ml |
|
|
FIXON Textile Marker in fabric-writing-bottle |
|
|
FIXON Textile Marker - Valve Marker |
|

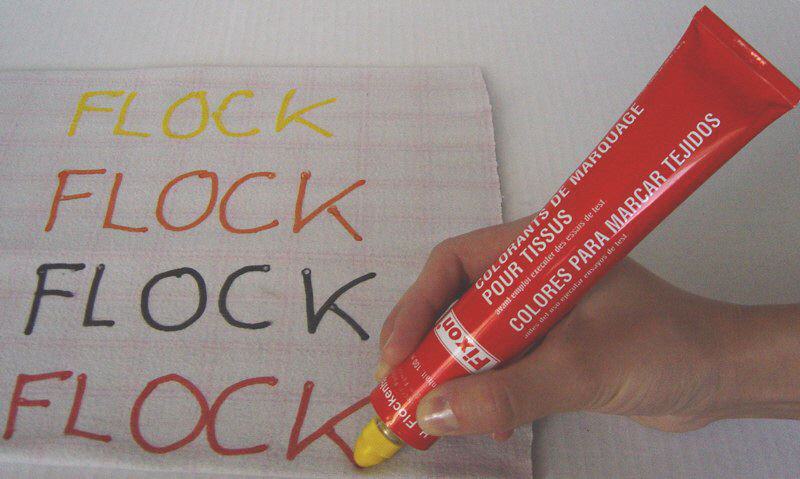

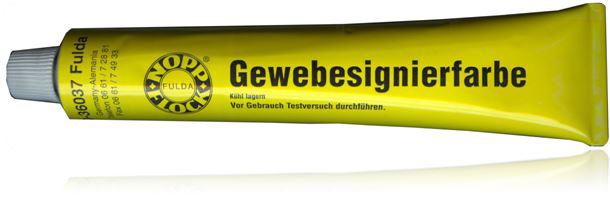

Fabric marking dye FIXON® Textile Marker in tube
For tube and fabric-writing bottles writing heads will be used.
Application - technical tip:
The writing heads are very easily dismantled. We recommend a cleaning our writing heads with our Fixon cleaning agent. Through the cleaning our writing heads are useable again and bring to you saving.

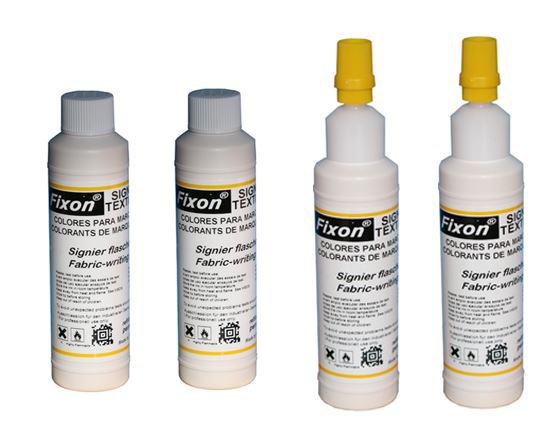

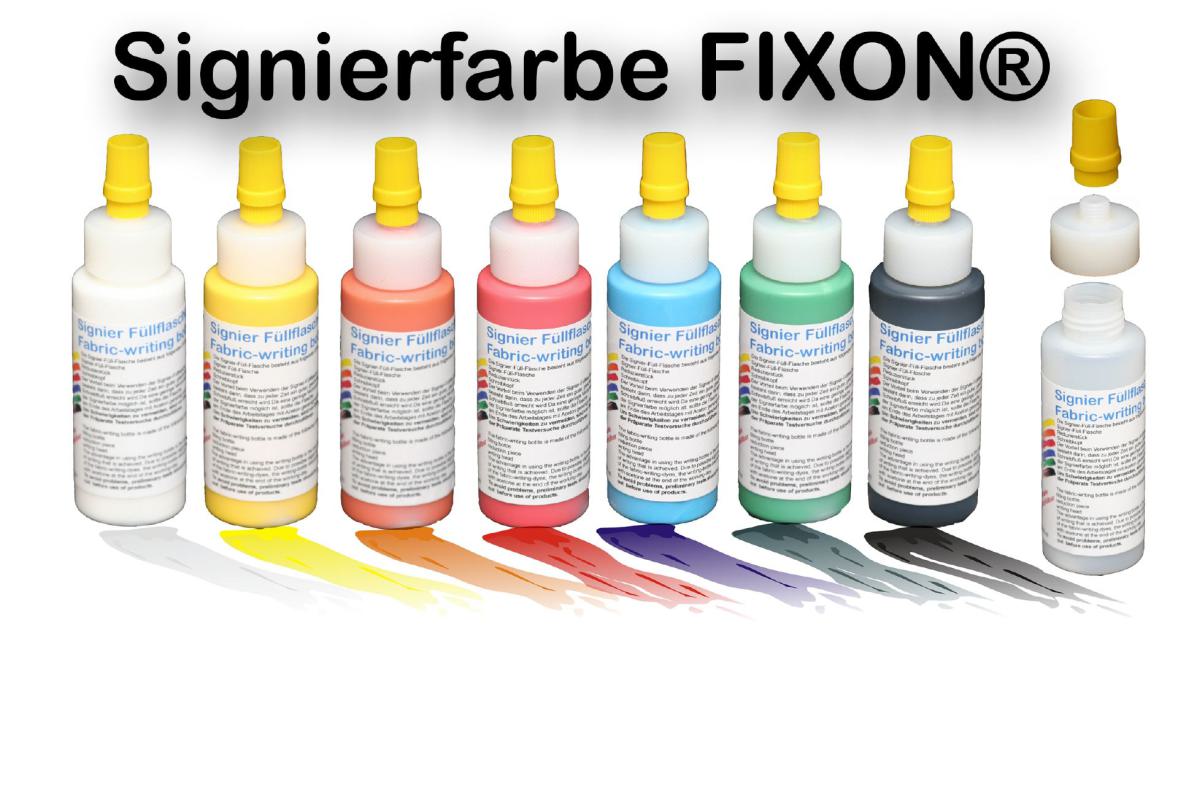

New! FIXON® fabric-writing bottle P'100
New! Handy and refillable fabric-writing bottle P'100
The FIXON fabric-writing bottle P'100 is our new refillable marking bottle for textiles.
A useful, economical and environmentally friendly solution for a very versatile appliance.
FIXON fabric-writing bottle P'100 in white, yellow, orange, red, green, blue and black. Quantity: 100 ml.
Application:
Please hold the FIXON fabric-writing bottle P'100 vertically and employ on the surface to be marked using regular pressure. Please clean the writing point after every use.
Reusing of the marking bottle is possible when our special FIXON textile marker colours are used for refilling.

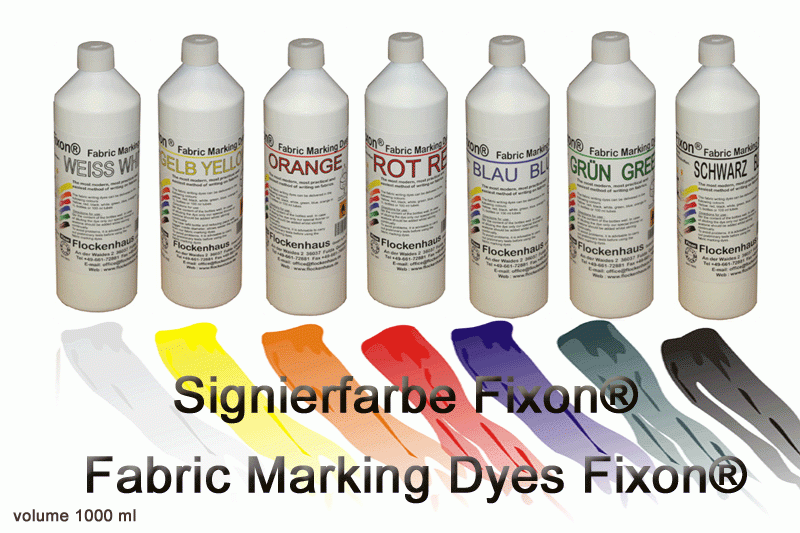

Fabric marking dye FIXON® Textile Marker in bottle
The writing heads could be very easy dismantled. We recommend the cleaning of our writing heads with our cleaning agent. Through the cleaning our writing heads are useable again and bring you cost saving.
All parts are available separately.
The advantage of using the fillable fabric-writing-bottle is the permanently even flow of writing that is achieved.
Fillable fabric-writing-bottles are delivered empty.

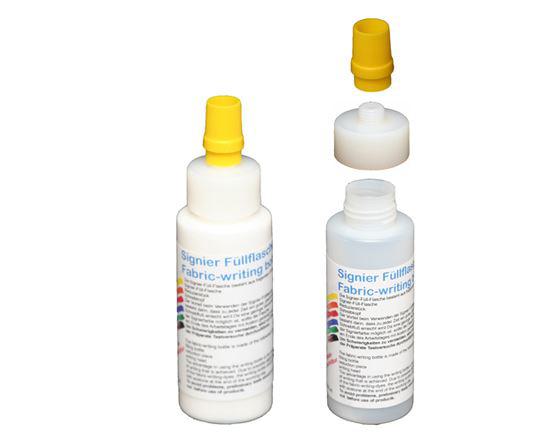

The fabric-writing bottle consists of the following components:
*Fillable fabric-writing-bottle
*Reducing piece
*Writing point
All parts are available separately.
The advantage of using the fillable fabric-writing-bottle is the permanently even flow of writing that is achieved.
Fillable fabric-writing-bottles are delivered empty.

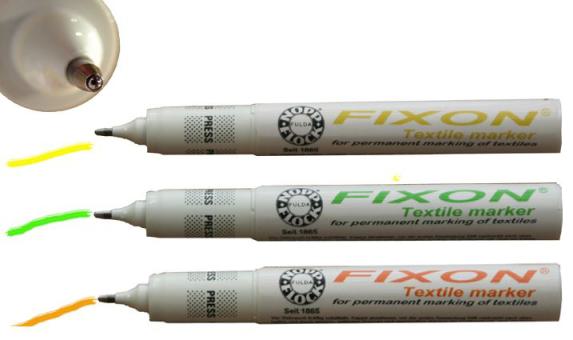

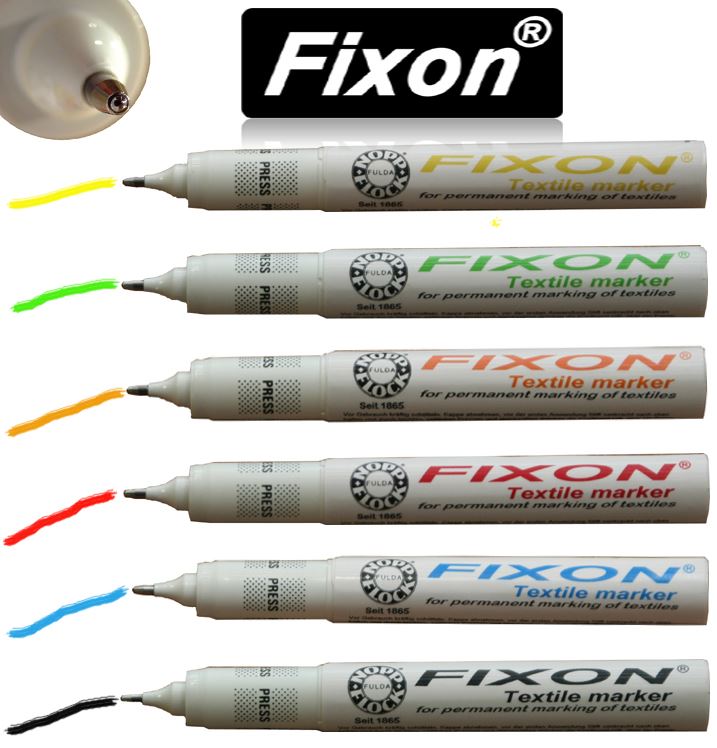

FIXON® Textile Marker - Valve marker
The Textile marker with valve system will be used for marking with very high requirements to receive permanent marking.
Thanks to the unique valve system we reach an optimum of writing flow.
Properties:
-Universal durable marking for almost all textiles
- Unique valve system
- weather-, acid base property
- light - resistant
Colours: white, yellow, red, black.

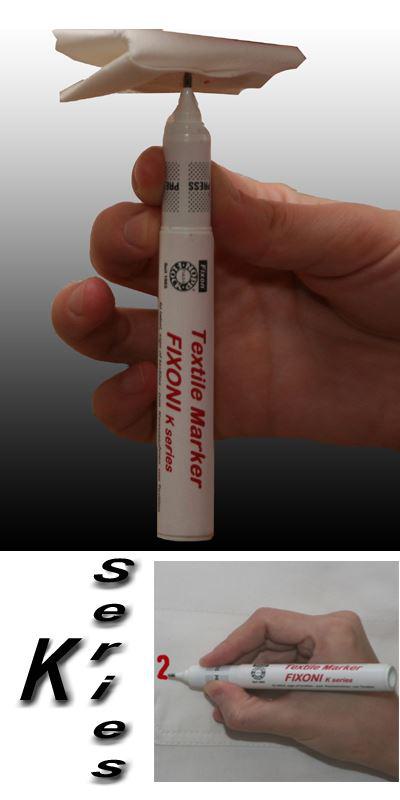

Application note for: FIXON Textile Marker K Series
Shake pen well.
Take off cap, before the first application hold pen upside down and briefly de-aerate by simultaneously pressing the tip (for example above a paper or cloth).
If Ink stops to flow well, press again.
Replace cap after use.
Test on concealed area before using.
Technical tip:
The writing head is screwed on to the top of the tube and remains there until the tube is empty. Only then is it screwed quickly on to a new tube.
Please note that: the more half or 100% synthetic fibres products contain, the finer the writing tip must be. The finer the product, the finer the tip.
1. It is essential to write on dry products. The fabric writing dyes cannot combine with wet and damp fibres.
2. The fabric-writing-dye must be completely dry before a new work process is begun. In general, the fabric-writing-dyes contain organic solvents which quickly evaporate so that a drying time of five minutes is sufficient.
3. The fabric-writing-dyes should be stored at normal temperatures i.e. neither too hot nor too cold. Cold temperatures make colours thick, where as heat makes them too thin.
4. The diversity of colours, yellow, red, orange, black, white, green, blue make it possible to mark or label products quarterly or according to customer groups.

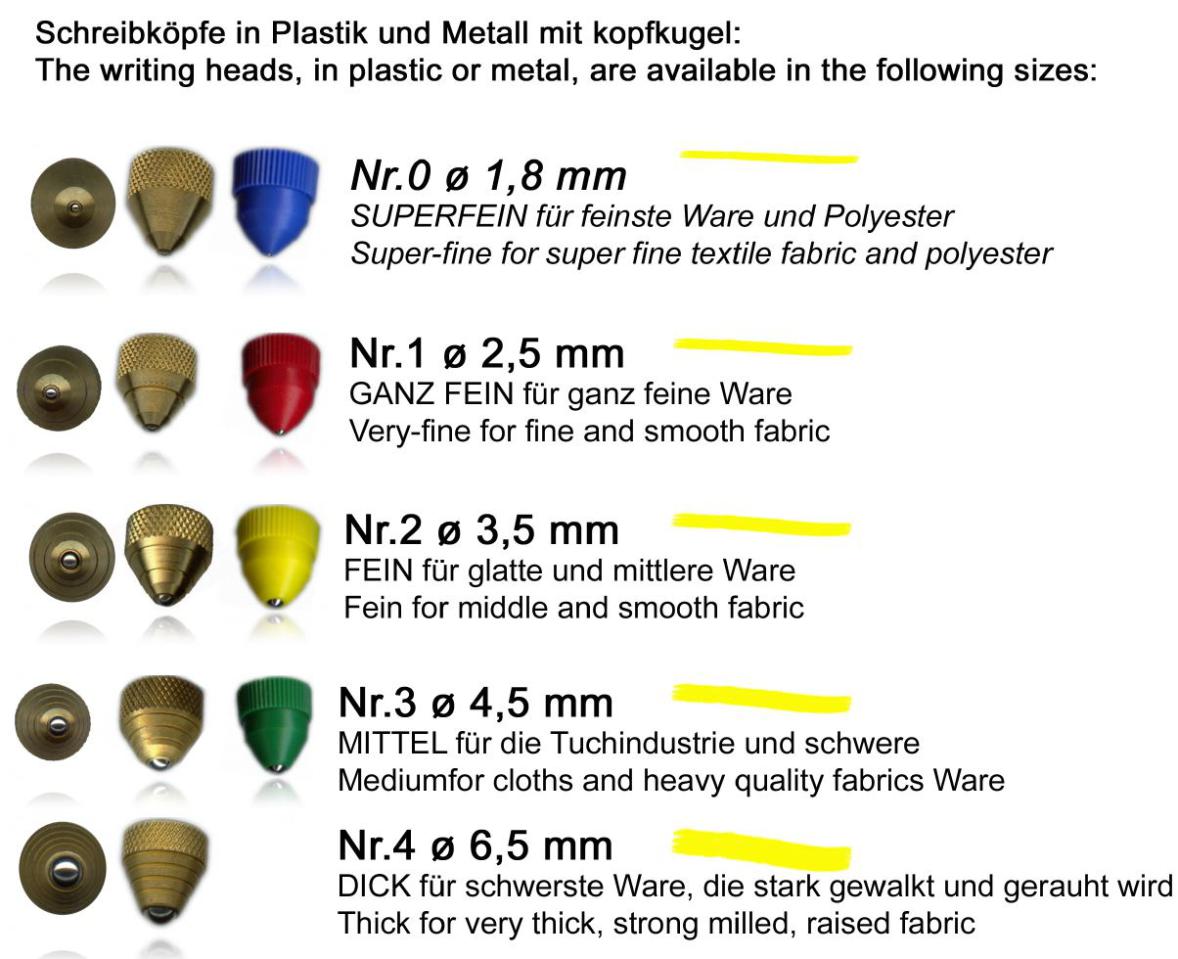

5. Flockenhaus provide five choices of writing heads :
Nr. 0 super fine for feinest products
Nr. 1 very fine for the silk industry as also for very fine cotton and polyester goods
Nr. 2 fine for all smooth fabrics in the cotton and cloth industry
Nr. 3 medium for cloths and heavy ware
Nr. 4 thick for heaviest ware that is strong milled and raised
6. The writing head stays on the tube until this is completely empty. Only then is it quickly screwed on to a new one.
7. If the writing head does not write immediately, scratch off possible remains of colour with the fingernail. Press the head slightly inward and squeese the tube. Let a few drops of the fabric designer dye run out. The tube is then ready for use again.
8. If, unexpectedly, the writing head does not write, screw it off and replace with a new one. Place the clogged-up head in Fixon cleaning agent. After a short time the remains of dye are dissolved. The writing head can now be blown through or dismantled and cleaned. After assembly the writing head is in perfect condition to be employed.
To avoid problems, it is advisable to carry out preliminary tests before using the fabric design dyes.
